Vacuum pump

  • gas detection instrument pump /test instrument pump
gas detection instrument pump /test instrument pump

gas detection instrument pump /test instrument pump

  • FW0801XPM
  • voltage:3V/4.5V/6V
  • flow:0-0.4L/min
  • diameter φ3.2mm
  • Product description: gas detection instrument pump /test instrument pump,micro negative pump suction pump,vacuum pump in smallest size.
  • INQUIRY

Mini vacuum pump 0-0.5LPM

1. Product Model :


FW0801XPM 3V/4.5V/6V

2.  Application and usage:
Sweeper, hair straightener, gas detection instrument, high-end beauty instrument, high-end medical products, etc.

3. Product feature :

The product has a precise flow rate and a small volume. It can be used as a positive pressure pump, a negative pressure pump, and a water-gas two-water pump. It has a long life and a wide range of applications.

The products are custom-made.

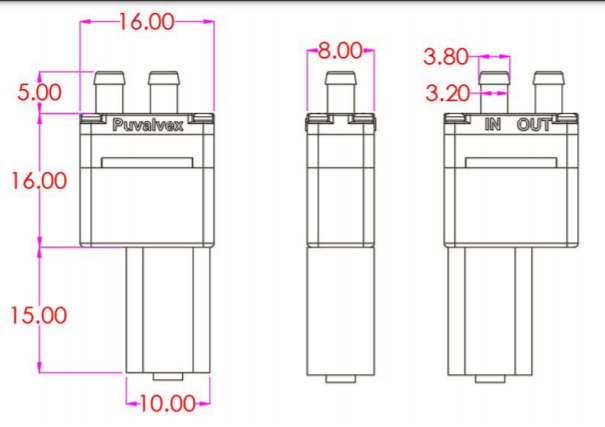

4. Product dimension:


5. Main technical parameters:

Rated voltage DC3.0V DC6.0V
Rated current Rated current <350mA <150mA
Maximum vacuum Vacuum <-200 mmHg
Air flow >0.4 L/min
Maximum pressure Pressure >300 mmHg
Leakage <10S (From 0 to 300 mmHg in a 500CC tank)
Noise 55dB (30 cm away)
Use fluid Apply for Air
Life test 50,000 Times
Use environment Environment 0~50 ℃,75% RH

6.  FAQ:
Sample lead time: 3 working days.

Order lead time: 20-25 days.

MOQ: 1000 pieces

Shipping way: Domestic delivery, ordinary express or logistics company, DHL, Fedex, UPS TNT, Sea shipping etc.

Response time respond: After receiving your message, we will respond to you within 24 hours, we will respond you in 24 hours.
